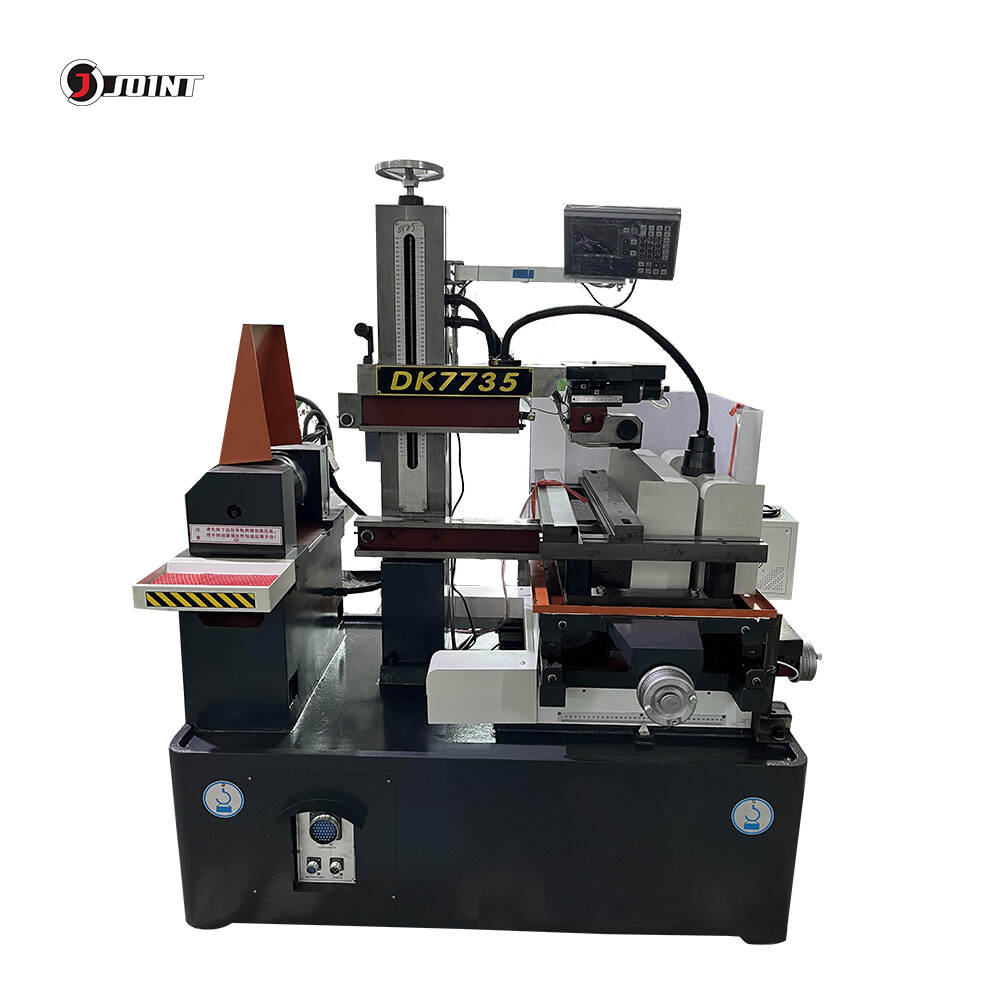

DK7735 High Precision CNC Wire Cut EDM Machine with Intelligent Control Cabinet
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen port or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
Medium Speed CNC Wire Cutting Machine EDM
High Speed CNC Wire Cutting Machine EDM
1. Cutting efficiency is up to 90mm²/min, 2~3 times than ordinary medium wire machine.
2. Well roughness, Ra≤2.5μm, and the wire effect in the ordinary C type is achieved.
3. With intelligent control cabinets and rich processing library. Easy to mastered basic operation.
4. Good quality and low price, can achieve the ordinary C type in the wire effect.
Product main technical specifications
DK7735 High Precision CNC Wire Cut EDM Machine with Intelligent Control Cabinet
| Specifications |
Units | Model | |
| DK7735 | |||
| Table size | mm | 710*460 | |
| Table travel | mm | 350*450 | |
| Wire frame span | mm | 400 | |
| Processing taper | °/mm | 6°, 15°, 30°/80 | |
| Optimum processing surface roughness | μm | ≥90 | |
| Electrode diameter | mm | 0.10-0.20 | |
| Speed of the electrode wire | m/s | 11.5 | |
| Working liquid | DX-1DX-4 | ||
| Processing accuracy | According to GB7926-87 standard | ||
| Worktable movement pulse amount | 0.001 | ||
| Machine consumption power | kw | ＜1.0 | |
| Max workpiece weight | kg | 300 | |
| Net weight | kg | 1300 | |
| Dimension | mm | 1240*1170*1400 | |
