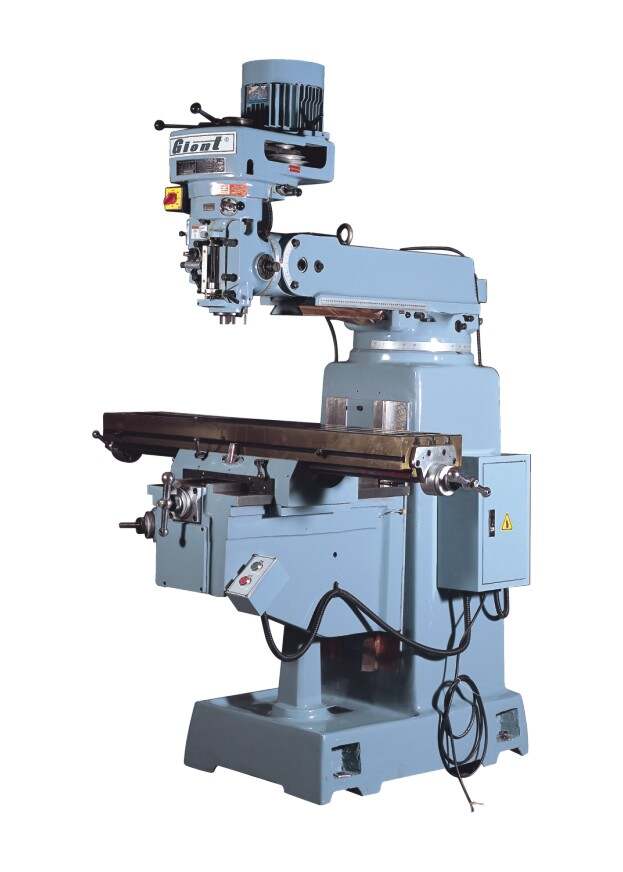

4S/4SA High Efficiency Turret Milling Machines
Quick Details
OEM：
Available
Sample:
Available
Port:
Shenzhen or any seaport in China
Payment:
Western Union,L/C,T/T,D/P
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
10 unit per month
Quick Details
Shipping fee
Shipping fee
Strong cutting and high efficiency production capacity
1. Spindle tolerance: 0.005mm
2. Suitable for plastics, metal mold processing and other strong cutting parts.
3. Exclusive spindle assembly technology with high precision and cutting efficiency.
Product main technical specifications:
| Specifications |
Units | Model | |
| 4S/4SA | |||
| Table size | mm | 1270x254x90 1370x280x90 |
|
| Travel | Longitude(X) | mm | ▲900 ▲1000 |
| Crossward(Y ) | mm | ▲395 ▲410 | |
| Vertical(Z) | mm | ▲325 | |
| Travel of spindle quill | mm | 127 | |
| Max. distance from the spindle nose to table | mm | 400/470 | |
| Spindle | Rotation speed (Step speed milling head) |
50/60HZ rpm | 66-4540/80-5440 |
| Rotation s peed (Variable speed milling head) |
50/60HZ rpm | 40-3125/50-3750 | |
| Rotation speed (Inv erter speed milling head) |
50HZ rpm | 0-4200 | |
| Taper | R8(NT30) | ||
| Rated power | HP | 3HP | |
| Tilt angle | Forward and Backward | +-45° | |
| Left and Right | +-90° | ||
| Dimension | mm | 1500x1700x2150 1500x1800x2200 |
|
| Net weight | kg | 1400/1550 | |
